Attribute panel height

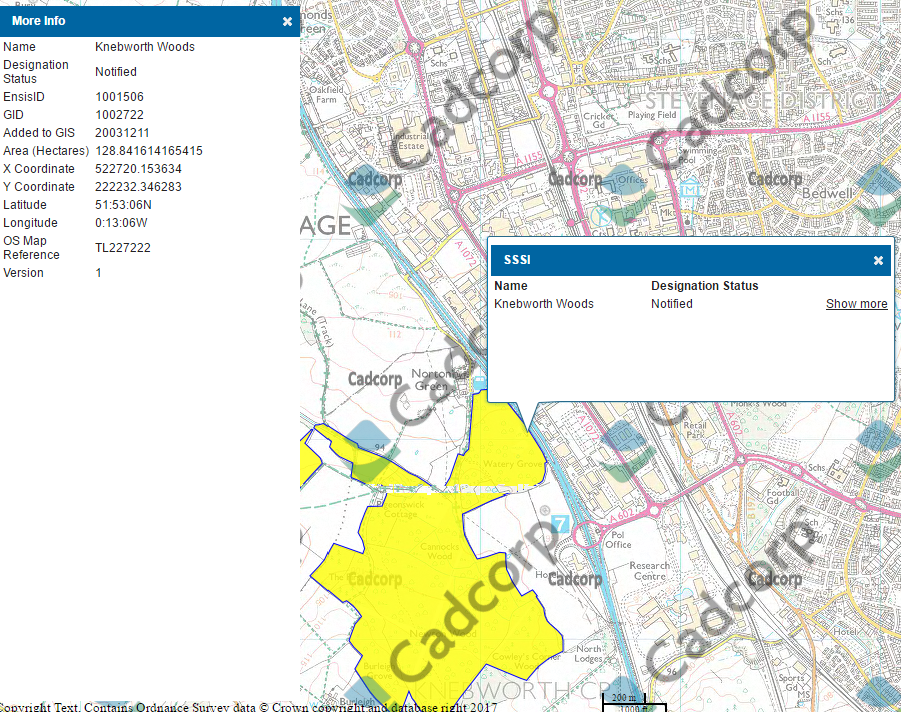

By default the height of the main attribute panel will be full screen height. This may be higher than is necessary for smaller amounts of data being displayed and will result in a large area of the map obliterated with white space:
.png)

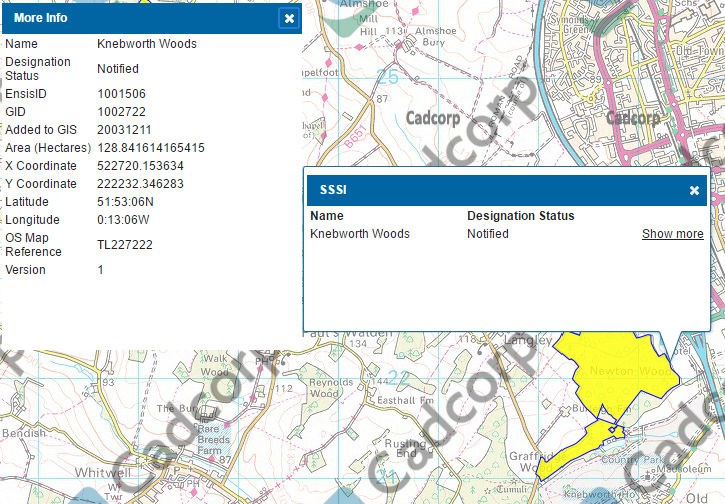

In the above case the main attribute panel would be more suited to being shown half height:

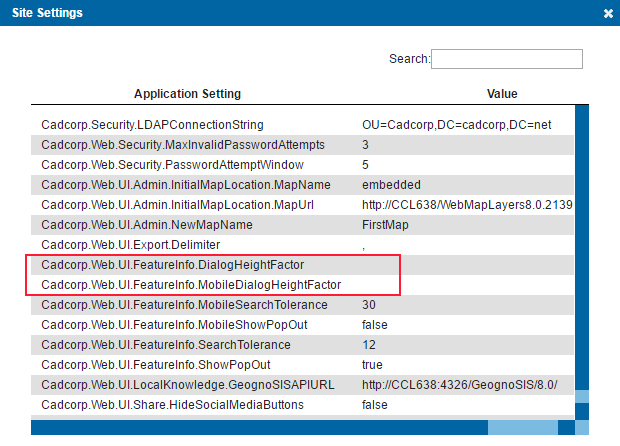

To make this change locate the following settings in the Site Settings dialog:
Cadcorp.Web.UI.FeatureInfo.DialogHeightFactor - this setting controls desktop sites
Cadcorp.Web.UI.FeatureInfo.MobileDialogHeightFactor - this setting controls mobile sites
Remove the default value "1" from the desktop and/or mobile setting(s).
Leave the Value field blank as shown below:
