OS Open Names - Quick Search Configuration

Web Map Layers 8.0 supports the OS Open Names API, which can be added and used for the Quick Search to provide an easy, fast and current dataset for searching on postcodes, roads and place names for Great Britain.

Steps to follow to add the OS Open Names to Quick Search for searching:

1. Sign up for a free OS Names API key - https://developer.ordnancesurvey.co.uk/home
2. Open the webMapLayersConfig.db in a SQLite database browser, usually located C:\inetpub\wwwroot\WebMapLayers8\App_Data
3. Open the Search_OS_Open_Name Table and populate the record:

SearchID	auto generated number
Name	The name of the search, e.g. Postcode Search (OS Names)
MapID	MapID value from the Map Table
IconID	IconID value from the Icons Table
ZoomResolutionID	The zoom to Resolution, pick a ResolutionID from the Resolutions Table, making sure it corresponds with the correct MapID
ZoomScaleID	ZoomScaleID
NorthingProperty	is the Northing property set by the Ordnance Survey, which should be set to Geometry_Y
EastingProperty	is the Easting property set by the Ordnance Survey, which should be set to Geometry_X
ResultProperty	is the Result value from the Ordnance Survey, which should be set to Name1
Key	is the Ordnance Survey API key value
LocalTypeFilterID	value from the FilterTypeID column in the Search_OS_Open_Name_Filter_Type Table e.g. 10 for Postcode
SecondaryResultProperty	An example value is POPULATED_PLACE, which is likely to be the town or city name e.g. Cambridge
ResultsDelimiter	used to space results when a SecondaryResultProperty is used

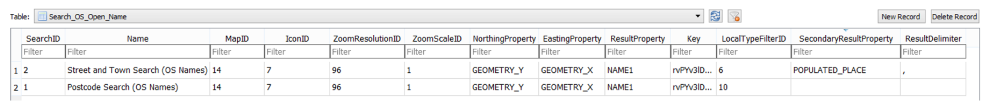

The example below shows a configuration for searching on Street and Postcodes

* The values entered into the Table are case sensitive. Values from the OS Open Names API must be upper case.

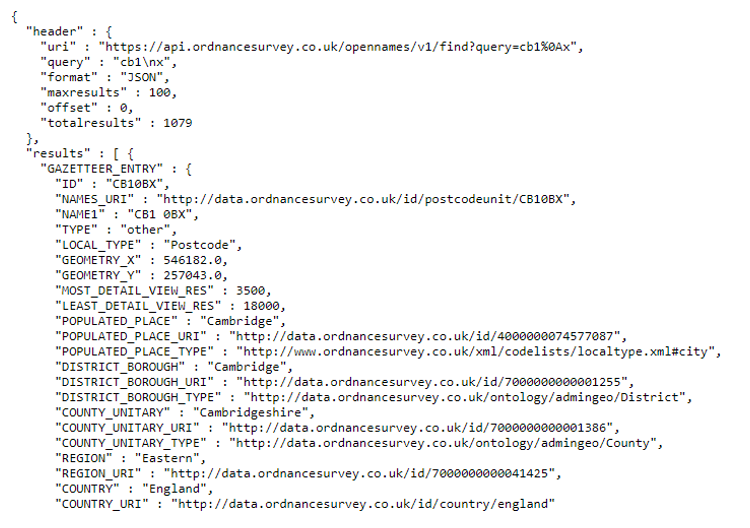

An example OS Open Names request:

---
