Reprofile LineString

Reprofile LineString re-defines a selected path of an existing LineString or Link item.

Select CAD > Alter > Reprofile LineString.
Click on the point of the LineString or Link item to start the reprofiling.
This is the start of the section of the LineString or Link item to be re-defined and must start on the original LineString or Link item.
Next input further points for the new path, finishing up with a point on the original LineString or Link item,
Pressing Enter when you have finished.
The portion of the original LineString or Link item (which fell between the first and last points) is deleted. The re-profiled LineString or Link item now follows the new path between these two points.

Note that the start and end positions can be the start and end of the original LineString or Link item in order to replace the whole LineString or Link item.

Reprofile LineString allows you to redefine a selected path of a LineString item, automatically deleting the old path and connecting the new path into the polyline.

It can also be used with topology. See What is Topology for more information.

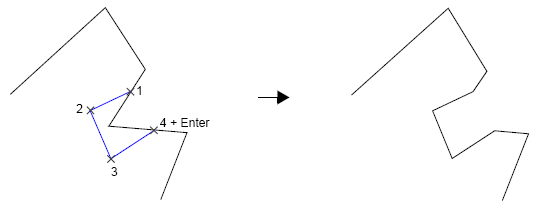

Example:

Select Reprofile LineString.
Click a point for the start of the new path (1). This must be on an existing LineString item.
Click further points (2, 3), similar to drawing a LineString item, to construct the new path. The last point (4) must be on the original LineString item.
Press Enter or double-click when you have finished.
