Accessing the Local Knowledge Web Service

Local Knowledge queries are normally run within the WebMap interface. But it is possible to get Local Knowledge results without viewing a map; to do this use the HTTP POST requests directly against the Local Knowledge web service.

Managing API keys

Cadcorp recommends issuing an API key to any application (Local Knowledge, Quick Search) that wants to use the API.

Click Security > Configuration > API Keys. Here API Keys can be created, modified and removed.

To use the API key add an x-api-key header, the value should be the key generated in the Manager.

Here are a few queries that can be defined on data layers:

Access Local Knowledge

Path

https://<server>/<app>//Localknowledge/api

Request Type

GET

Response

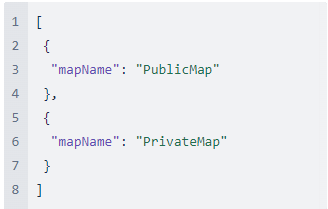

Gets a JSON list of available maps which have the local knowledge extension enabled.

Initialize a Local Knowledge Session

Path	https://<server/<app>/localknowledge/api/<mapname>/sessions
Request Type	POST
Response	Returns a unique session ID to be used in further Local Knowledge queries. Note that after 20 minutes of no use, this session will be destroyed and a new one will need to be created.
Additional Information	`mapname`is derived from the list of available maps returned above.

Find queryable overlays for Local Knowledge

Path

https://<server/<app>/localknowledge/api/<mapname>/sessions/<sessionid>/overlays

Request Type

GET

Response

Gets a JSON list of overlays that can be queried:

Perform a Local Knowledge Query

Path	https://<server>/<app>/localknowledge/api/<mapname>/sessions/<sessionid> /query/<layerindex>?x=<x coordinate>&y=<y coordinate>&epsgcode=<epsgcode>&bbox=<bounding box>
Request Type	GET
Response	Gets a JSON-formatted list of corresponding Local Knowledge entries, relevant to the type of query carried out.
Additional Information	The `bbox`parameter is optional but will be used in areas searches. `x`: number the x coordinate to search from. `y`: number the y coordinate to search from. `epsgCode`: (number) the EPSG code coordinates correspond to.

Keep Local Knowledge Session Alive

Path	https://<server>/<app>/localknowledge/api/<mapname>/<sessionid>/ping
Request Type	GET
Response	Will prevent current session from expiring, if still active.
