Single-click Feature Creation

Use Single click Editing to add new features to your map from similar features available in a background map layer.

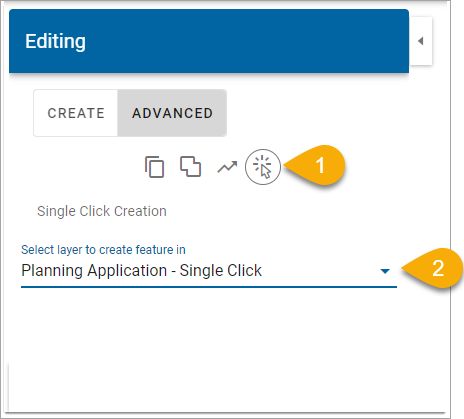

Select Editing > Advanced.

Select the Single Click icon. From the dropdown list, select a layer in which to create the new feature. Only layers configured to find OS Mastermap are displayed.

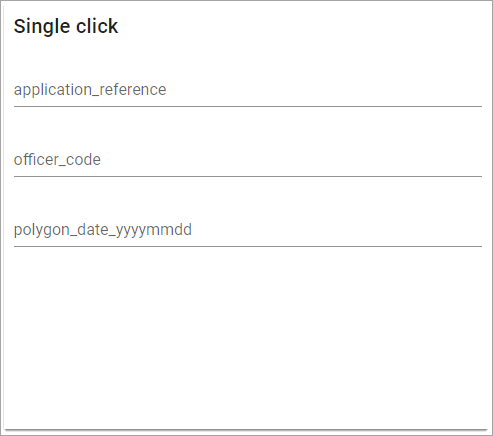

Now click on a feature on the OS Mastermap. Fill the relevant attributes and select Create.(These are attributes that have already been configured in WebMap manager for that specific layer).

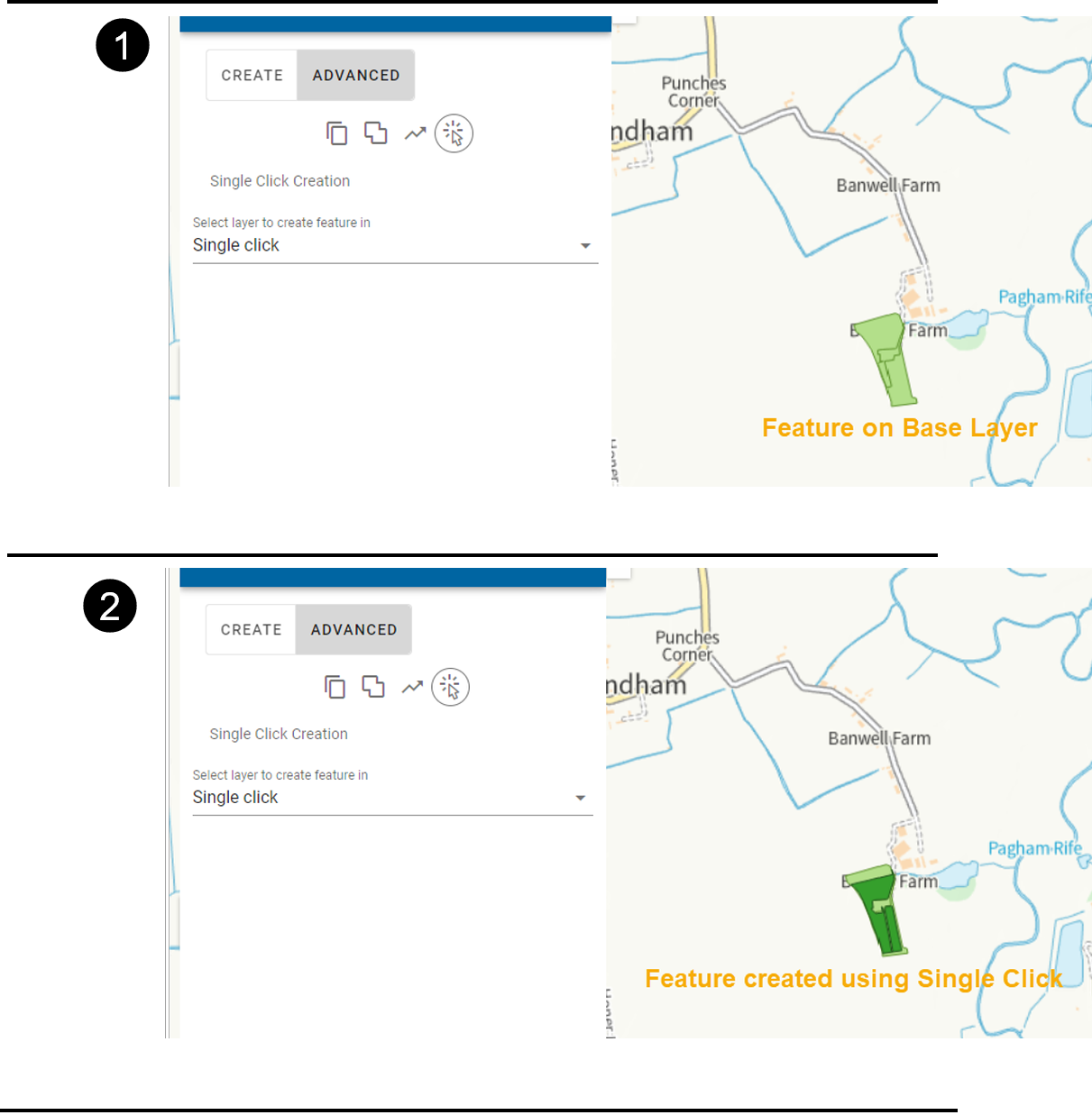

In the example below, the barn has been selected. After clicking this feature on the base layer and filling in the attributes, the new feature will be created matching the exact geometry of the underlying OS Mastermap feature.

---
