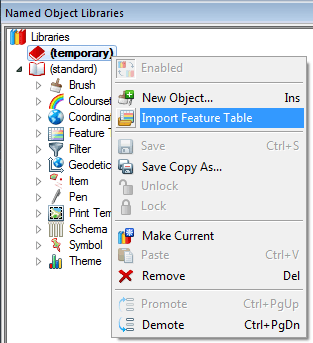

You can import a feature table in JSON, XML or as a comma-separated text file (*.txt). Use the Import Feature Table option on the local menu of each editable library in the Libraries Control Bar.
Navigate to the required JSON, Text or XML file and click Open.
The Save As dialog will be displayed:
Click OK.
MyFeatureTable will be added into the current library, for example:

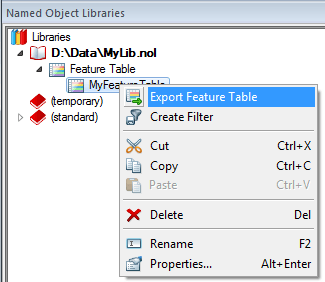

A Feature Table can be exported to JSON and XML files. Use the Export Feature Table option on the feature table local menu.

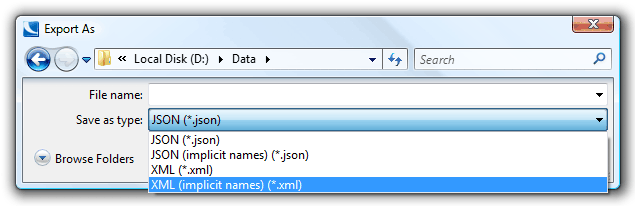

Enter the name of the Feature Table to be saved and select the file type.
Note: Cadcorp SIS V6 allows feature tables to be exported as comma-separated text files (*.txt). These text files may be imported into SIS but feature tables cannot be exported in text format in SIS.
