Add Overlay Add Overlay| If no Overlay has already been created: | If an Overlay already exists: |
|
|
Add Overlay displays the Overlay Types dialog allowing you to add a new overlay.
The Overlay Types dialog shows all available overlay types grouped under six tabs:

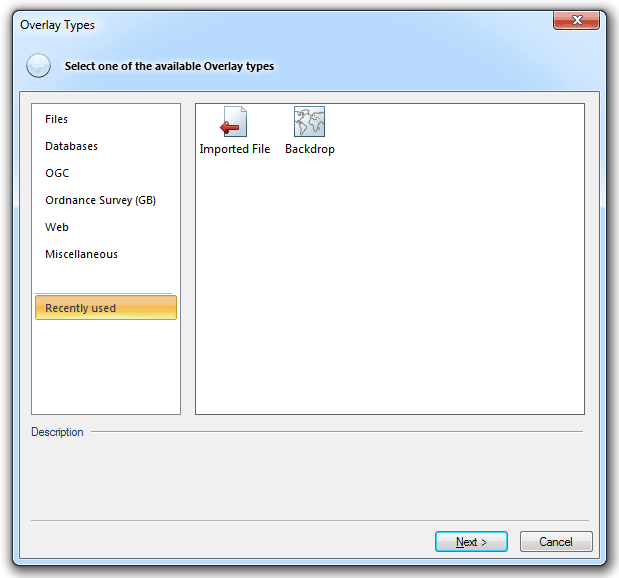

Recently used (shown when overlay selections have been made)
The Overlay Types dialog opens to show the overlays available under the Files overlay group.
A dataset read from a file on disk.
The SIS Workspace Definition (SWD) stores a link to the dataset. If the dataset is modified, then all SWDs with links will reflect the changes.
Click here for the full description of the File overlay type.
An editable dataset file in various formats. The dataset file can be shared by many users, and linked to many SIS Workspace Definitions.
Some formats only allow one user at a time to edit the file (file-level locking), others allow multiple users to edit (item-level locking).
Click here for the full description of the Create new file overlay type.
A dataset imported from a file on disk.
The contents of an imported dataset are copied into the SIS Workspace Definition, so they can be edited without affecting the original file.
Click here for the full description of the Imported File overlay type.
A dataset that tiles together lots of other dataset files in a rectangular grid, to make a continuous map base.
Index Datasets can use multiple directories and/or multiple file formats.
See Loading Data - Index Datasets for details of creating a Cadcorp Index Dataset.
Indexes all of the raster files in a folder, optionally checking all child directories.
The index can be imported, for faster re-opening.
See Cadcorp Raster Index for details of creating a Cadcorp Raster Index
.png)
Microsoft SQL Server Spatial Dataset
An editable dataset that stores items in a Microsoft SQL Server Spatial database, using the planar geometry type.
This allows SIS to interoperate with other software that supports the Microsoft SQL Server Spatial database planar geometry type.
Click here for the full description of the Microsoft SQL Server Spatial Dataset option.
An editable dataset that stores items in a PostGIS-enabled database, using the PostGIS spatial schema.
This allows SIS to interoperate with other software that supports the PostGIS spatial schema.
Click here for the full description of the PostGIS option.
Loads raster data from a PostGIS Raster database.
Click here for the full description of the PostGIS Raster option.
An editable dataset that stores items in an Oracle 9i, or later, Spatial database, using the Oracle Object-Relational schema.
This allows SIS to interoperate with other software that supports the Oracle Spatial Object-Relational schema.
Click here for the full description of the Oracle Spatial option.
Loads Oracle 10g, or later, Network Model data into a SIS Link-Node topological network.
Click here for the full description of the Oracle Network Model option.
Loads raster data from an Oracle 10g, or later, GeoRaster database.
Click here for the full description of the Oracle GeoRaster option.
A read-only view of a database table that has columns that specify X, Y and Z coordinates.
Each row will be represented as a Point item, with attributes from other columns in the table.
Click here for further details of Cadcorp View Points.
A read-only view of a database table that has a column of item geometry, stored as Binary Large Objects (BLOBs). SIS can use various formats for the BLOBs, including the OGC standards. Each row with a valid BLOB will be an item within the dataset, with attributes from other columns in the table.
Click here for further details of Cadcorp View Geometry.
ESRI ArcSDE data stored in an Oracle 8, or later, database.
ESRI ArcSDE, and the ArcSDE logo are trademarks, registered trademarks, or service marks of ESRI in the United States, the European Community, or certain other jurisdictions.
Click here for the full description of the ESRI ArcSDE option.
An Esri File Geodatabase, read via the Esri FileGDB SDK.
Click here for the full description of the Esri file Geodatabase option.
OGC:
.png)
Acts as an OGC Web Map Service (WMS) client, downloading raster images over the Internet from an OGC WMS.
You can configure the connection to the WMS, e.g. Layers to draw, image format to use.
Click here for the full description of the OGC WMS overlay type.
Acts as an OGC Web Feature Service (WFS) client, downloading vector geometry over the Internet from an OGC WFS.
You can configure the connection to the WFS, e.g. specify a filter.
Click here for the full description of the OGC WFS overlay type.
Acts as an OGC Web Coverage Service (WCS) client, downloading coverage data over the Internet from an OGC WCS.
You can configure the connection to the WCS, e.g. specify bands.
Click here for the full description of the OGC WCS overlay type.
Acts as an OGC Web Map Tile Service (WMTS) client, downloading raster tiles over the Internet from an OGC WMTS.
You can configure the connection to the WMTS, e.g. Layers to draw, image format to use.
Click here for the full description of the OGC WMTS overlay type.
Opens an OGC Web Services (OWS) or Web Map (WMC) Context document. An OWS Context document contains references to one or more OGC Web Services, e.g. WMS, WFS, etc.
The document can be either a local (LAN) file or accessed via an HTTP URL.
Click here for the full description of the OGC OWS Context Document overlay type.
Opens an OGC Web Map Context (WMC) document. A WMC document contains references to one or more OGC Web Map Service layers.
The document can be either a local (LAN) file or accessed via an HTTP URL.
Click here for the full description of the OGC WMS Context Document overlay type.
Opens an OGC Geography Markup Language (GML) document.
The document can be either a local (LAN) file or accessed via an HTTP URL
Click here for the full description of the OGC GML Document overlay type.
Opens an OGC cityGML document.
The document can either be a local (LAN) file or accessed via an HTTP URL.
Click here for the full description of the OGC CityGML Document option.
Opens an OGC Keyhole Markup Language (KML) document.
The document can be either a local (LAN) file or accessed via an HTTP URL.
Click here for the full description of the OGC KML Document overlay type.
Connects to Geographically Encoded Objects for RSS (GeoRSS) feed.
Click here for the full description of the GeoRSS overlay type.
Acts as an OGC Catalogue Services for the Web (CS-W) client, querying available OGC services over the Internet from an OGC CS-W service.
You can configure the connection to the CS-W service, e.g. keywords to search for, type of service required, area of interest, etc.
Click here for the full description of the OGC CS-W overlay type.
Ordnance Survey (GB):
 (extract).png)
A dataset that views OS MasterMap Topography Layer data stored in any of the relational databases supported by the Cadcorp SIS OS MasterMap Manager: Oracle Locator/Spatial; PostGIS; Microsoft SQL Server Spatial; and Cadcorp OS MasterMap Database (ODB).
Click here for the full description of the OS MasterMap Topography Layer option.
A point dataset of Ordnance Survey (GB) MasterMap Address data.
Click here for the full description of the MasterMap Address Layer overlay type.
A seamless raster dataset of Ordnance Survey (GB) MasterMap Imagery Layer files and metadata.
Click here for the full description of the MasterMap Imagery Layer overlay type.
A topological dataset of Ordnance Survey (GB) MasterMap Highways Network data.
Click here for the full description of the OS MasterMap Highways Network overlay type.
A topological dataset of Ordnance Survey (GB) MasterMap Integrated Transport Network (ITN) data.
Click here for the full description of the MasterMap ITN Layer overlay type.
Indexes all of the Ordnance Survey (GB) MasterMap 'chunks' in a folder, displaying their extents, file name, and file size.
Click here for the full description of the MasterMap Index overlay type.
A dataset that views OS VectorMap District data stored in any of the spatial databases supported by the Cadcorp SIS OS VectorMap Manager: Oracle Locator/Spatial; PostGIS; and Microsoft SQL Server Spatial.
Click here for the full description of the VectorMap District overlay type.
A dataset that views OS VectorMap Local data stored in any of the spatial databases supported by the Cadcorp SIS OS VectorMap Manager: Oracle Locator/Spatial; PostGIS; and Microsoft SQL Server Spatial.
Click here for the full description of the VectorMap Local overlay type.
A dataset that views OS OpenData (OS OpenMap - Local, OS OpenRivers, or OS OpenRoads) stored in any of the spatial databases supported by the Cadcorp SIS OS OpenData Loader: Oracle Locator/Spatial; PostGIS; and Microsoft SQL Server Spatial.
Click here for the full description of the OS (GB) OpenData overlay type.
An Index Dataset automatically created from Ordnance Survey (GB) Land-Line data stored on a CD-ROM, or other mass storage device.
The Land-Line data is supplied in directories that represent 10km x 10km National Grid tiles, and can be 1:1250 and/or 1:2500.
Click here for the full description of the CD-ROM overlay type.
Loads Ordnance Survey (GB) Meridian 2 Shapefiles in a folder.
Click here for the full description of the Meridian 2 overlay type.
Connects to the Ordnance Survey (GB) OS Open Space Pro® 'tile server' of pre-rendered images, and mosaics the tiles together as a seamless image.
Click here for the full description of the OpenSpace Pro Tiles overlay type.
Web:
.png)
Opens a GeoJSON document.
The document can either be a local (LAN) file or accessed via an HTTP URL.
Click here for the full description of the GeoJSON overlay type.
 icon.png)
Bing Maps Tiles (Aerial with labels)
Connects to the Microsoft Bing Maps "tile server", and mosaics the tiles together as a seamless image.
A Microsoft Bing Maps "Application Key" is required to use this dataset.
Click here for the full description of the Bing Maps Tiles (Aerial with labels) option.
Connects to the Microsoft Bing Maps "tile server", and mosaics the tiles together as a seamless image.
A Microsoft Bing Maps "Application Key" is required to use this dataset.
Click here for the full description of the Bing Maps Tiles (Aerial) option.
Connects to the Microsoft Bing Maps "tile server", and mosaics the tiles together as a seamless image.
A Microsoft Bing Maps "Application Key" is required to use this dataset.
Click here for the full description of the Bing Maps Tiles (Roads) option.
ERDAS APOLLO Essentials - Image Web Server
Loads a dynamic image from an ERDAS APOLLO Essentials - Image Web Server.
Click here for the full description of the ERDAS APOLLO Essentials - Image Web Server option.
Connects to an ESRI ArcIMS Service
ESRI, ArcIMS, and the ArcIMS logo are trademarks, registered trademarks, or service marks of ESRI in the United States, the European Community, or certain other jurisdictions.
Connections with an ESRI ArcIMS Image Service are dynamic and operate in the same way as if viewing using a web browser.
Click here for the full description of the ESRI ArcIMS Service option.
Connects to the MapQuest Open 'tile server', and mosaics the tiles together as a seamless image.
Click here for the full description of the MapQuest OSM Tiles option.
Connects to the MapQuest Open 'tile server', and mosaics the tiles together as a seamless image.
Click here for the full description of the MapQuest Open Aerial Tiles option.
Connects to NASA World Wind Layers, either over the internet, or from a local World Wind cache.
NASA, NASA World Wind, and the NASA icon are all copyright NASA.
Click here for the full description of the NASA World Wind option.
Connects to the OpenStreetMap database via the RESTful API, and downloads data with the current extents.
The maximum extents allowed is one fifth of a degree in longitude and latitude. Note that the OpenStreetMap server may also impose other load-based limits.
Click here for the full description of the Open Street Map option.
Connects to the OpenStreetMap "tile server" of pre-defined images of the OpenStreetMap database, and mosaics the tiles together as a seamless image.
Click here for the full description of the Open Street Map Tiles option.
Connects to the Stamen Design 'tile server', and mosaics the tiles together as a seamless image.
Map tiles by Stamen Design, under CC BY 3.0. Data by Open Street Map, under CC BY SA.
Click here for the full description of the Stamen Design 'Toner lite' tiles option.
Connects to the Stamen Design 'tile server', and mosaics the tiles together as a seamless image.
Map tiles by Stamen Design, under CC BY 3.0. Data by Open Street Map, under CC BY SA.
Click here for the full description of the Stamen Design 'Toner' tiles option.
Stamen Design 'Watercolor' tiles
Connects to the Stamen Design 'tile server', and mosaics the tiles together as a seamless image.
Map tiles by Stamen Design, under CC BY 3.0. Data by Open Street Map, under CC BY SA.
Click here for the full description of the Stamen Design 'Watercolor' tiles option.
A Tile Map Service provides access to resources, in particular, to rendered or pre-rendered/cached cartographic tiles at fixed scales over the internet.
Note: The Tile Map Service specification is under active development, and is subject to change.
Click here for the full description of the Tile Map Service option.
Miscellaneous:
.png)
Use this option to create a new internal dataset.
Internal datasets are user datasets which are stored within the SWD, they do not exist as separate files and cannot be used in other SWDs or accessed by other users. They are often used for data of a temporary or personal nature.
Click here for the full description of the Cadcorp Internal Dataset option.
This provides a copy of an existing overlay.
Click here for the full description of the Copy Overlay option.
This provides a raster outline of the UK, Ireland and the world in different projections. Backdrops are used for reference and are often useful as the initial overlay in a SIS Workspace Definition (SWD).
Click here for the full description of the Backdrop option.
Use place-name gazetteer, and load coverage from Digital Chart of the World in SIS as a read-only dataset.
Digital Chart of the World was a series of CDs produced by the USA Defence Mapping Agency.
Click here for the full description of the Digital Chart of the World option.
Exchangeable Image File Format (EXIF)
Indexes any EXtensible Image Format (EXIF) files in a folder.
Click here for the full description of the Exchangeable Image File Format (EXIF) option.
Geospatial Data Abstraction Library (GDAL)
Loads data via the Geospatial Data Abstraction Library (GDAL).
GDAL is a translator library for raster geospatial data formats that is released under an Open Source license. As a library, it presents a single abstract data model to the calling application for all supported formats.
Click here for the full description of the Geospatial Data Abstraction Library (GDAL) option.
 icon.gif)
NGA Digital Nautical Chart (DNC)
Loads Digital Nautical Chart (DNC) data.
The Digital Nautical Chart® is produced by the National Geospatial-Intelligence Agency (NGA) and is an unclassified, vector-based, digital database containing maritime significant features essential for safe marine navigation.
Click here for the full description of the NGA Digital Nautical Chart (DNC) option.
Loads Vector Map (VMAP) Level 0 or Level 1 data.
The VMap Level 0 database provides worldwide coverage of vector-based geospatial data which can be viewed at 1:1,000,000 scale.
Click here for the full description of the NGA Vector Map Level 0/1 option.
Recently used:
When you have used any of the available Overlay types a Recently used tab will be created to show all the overlay selections used in the current session, for example:
Top of page
Send comments on this topic.
Click to return to www.cadcorp.com
© Copyright 2000-2017 Computer Aided Development Corporation Limited (Cadcorp).
OGC CityGML Document
OS MasterMap Topography Layer-OS MasterMap Address Layer icon.png)
-OS MasterMap Imagery Layer icon.png)
-OS MasterMap Highways Network icon.png)
-OS MasterMap ITN Layer icon.png)
-OS MasterMap Index icon.png)
-OS VectorMap District icon.png)
-OS VectorMap Local icon.png)
-OS (GB) OpenData icon.png)
-CD-ROM icon.png)
-OS (GB) Meridian 2 icon.png)
 icon.png)
 icon.png)
MapQuest OSM Tiles
Open Street Map
Open Street Map Tiles
Tile Map Service
